Model: C6800-32P10G= - Cisco Catalyst 6800 Switch Module
Detail: Catalyst 6800 32-port 10GE with dual integrated dual DFC4 spare
List Price: US$35,700.00
Price: $9,371.25
You save: US$26,328.75 (74% OFF)
Condition: Brand New Sealed
Availability: In stock
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 9,371.25 In stock Brand New Sealed
C6800-32P10G= SMARTnet Service Tool.

Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry

Overview (C6800-32P10G=)

The Cisco Catalyst 6800 Family Switches offer a variety of 10-Gigabit Ethernet modules. Working in conjunction with the Catalyst 6500-E/6807-XL Supervisor Engine 2T/2TXL (VS-S2T-10G & VS-S2T-10GXL), they can serve different needs on campus deployments. The family includes three modules: the Catalyst 6800 32-port, 16-port, and 8-port 10-Gigabit Ethernet Fiber Modules. C6800-32P10G= is the Catalyst 6800 32-port 10-Gigabit Ethernet Fiber Module Spare, it provides eight 40G, thirty two 1G or thirty two 10G transceiver ports.

Quick Specs

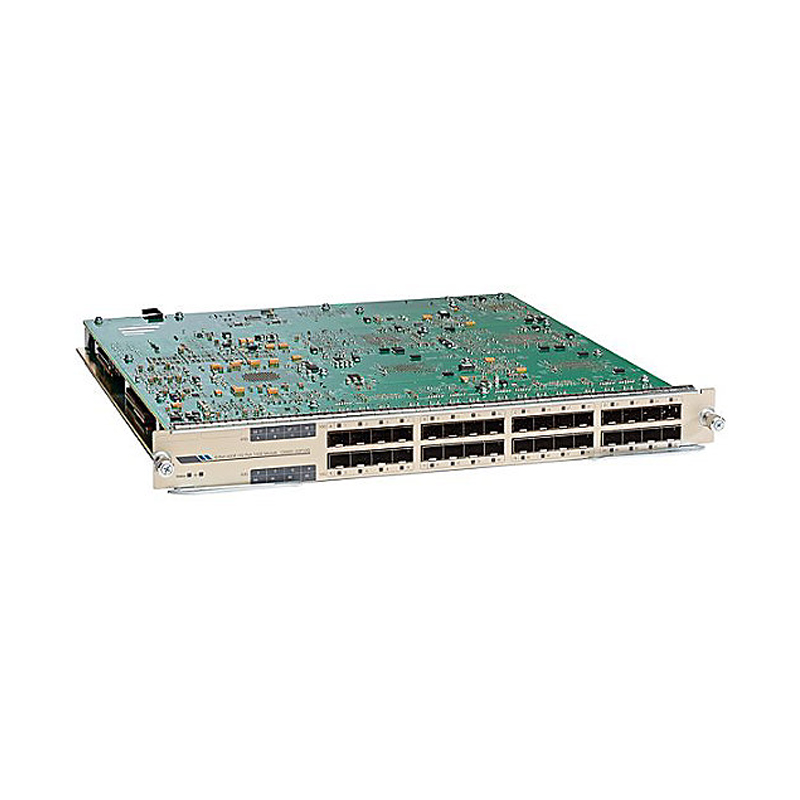

Figure 1 shows the 6800 Series 32-Port 10-Gigabit Ethernet Fiber Module.

the 6800 Series 32-Port 10-Gigabit Ethernet Fiber Module

 Table 1 shows the Quick Specs.

Product Code


Ports per module

·32 ports—Thirty-two 1G ports, or thirty-two 10G ports, or eight 40G ports
·Ports are numbered left to right.
  ·The top row has odd numbered ports 1 to 31.
  ·The bottom row has even numbered ports 2 to 32.
·4 port groups. Port ranges per port group:
  ·1, 3, 5, 7, 9,11, 13, 15
  ·2, 4, 6, 8, 10, 12, 14, 16
  ·17, 19, 21, 23, 25, 27, 29, 31
  ·18, 20, 22, 24, 26, 28, 30, 32

Backplane connection

160-Gbps backplane bandwidth in 6807XL; 80 Gbps backplane bandwidth in 6500-E chassis

Chassis/slot support

Can occupy slots 1-2 and 5-7 in a Cisco Catalyst 6807-XL. Can occupy any slot in Cisco Catalyst 6503E, 6504E, 6506E, 6509E, and 6509-V-E. Can occupy slots 1-6 and 9-13 in a Cisco Catalyst 6513-E

Distributed forwarding and performance

Comes equipped with factory-installed dual (2) DFC4-E or DFC4-EXL daughter cards

Maximum frame size

Up to 9216 bytes per frame

Module oversubscription rate

·2:1 oversubscription in a Cisco Catalyst 6807-XL chassis. (When all thirty-two 10G ports are used.)
·4:1 oversubscription in a Cisco Catalyst 6500 E-series chassis.(When all thirty-two 10G ports are used.)

Supervisor engine support

Supervisor Engine 2T-10GE

Supervisor Engine 6T

Software support

With Supervisor Engine 2T-10GE —Cisco IOS Release 15.2(1)SY or later

With Supervisor Engine 6T – Cisco IOS Release 15.3(1)SY or later

Fabric channel speed

In a Cisco Catalyst 6807-XL chassis—160 GB per second

In a Cisco Catalyst 6500-E series chassis—80 GB per second

TDR support

Supported with GLC-T (1G Copper SFP) transceivers

Digital Optical Monitoring (DOM) support

The DOM-supported 1G transceivers and  10G Fiber SFP/SFP+ transceivers

Port connector type

LC (optical) or RJ-45 (copper) depending on the SFP transceiver installed. Depending on the distance between the end ports, different QSFP+ transceivers can be used

Dimensions (H x W x D)

1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)


14.33 lb (6.5 kg)

Product Details

Figure 2 shows the C6800-32P10G= Ethernet Module Front Panel.

C6800-32P10G= Ethernet Module Front Panel


Status and ID LEDs

40G port IDs

10G ports (A total of eight port groups)


·The sticker on the module faceplate identifies it as either a C6800-32P10G or a C6800-32P10G-XL depending on whether a WS-F6K-DFC4-E or WS-F6K-DFC4-EXL daughter card is installed on the module.

The Accessories

Table 2 shows the recommended elements for the C6800-32P10G=.




10G SFP Options





10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC)

GLC Options



1000BASE-BX SFP, 1310NM


Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM


Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 3 shows the comparison of C6800-32P10G= , C6800-16P10G-XL and C6800-8P10G=.

Product Code




10GE ports

32 ports 1GE or 10GE

16 ports 1GE or 10GE

8 ports 1GE or 10GE

Port groups

4 port groups

2 port groups (N/A)

2 port groups (N/A)

Performance Mode


per port-group



per port-group



Switch fabric connection

160 Gbps in 6807-XL chassis

80 Gbps in 6500-E chassis


80 Gbps in 6807-XL and 6500-E chassis

80 Gbps in 6807-XL and 6500-E chassis

Get More Information

Do you have any question about the C6800-32P10G=?

Contact us now via Live Chat or sales@router-switch.com.


Specification (C6800-32P10G=)

C6800-32P10G= Specification

Physical Specifications

Dimensions (H x W x D)

1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)


14.33 lb (6.5 kg)

Environmental Specifications

Operating temperature

Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Humidity (RH) ambient (noncondensing)

10 to 90 percent

Operating altitude

Certified for operation: 0 to 6500 ft (0 to 2000 m)

Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)
