C6800-16P10G=

5 2
5/5.0
2 Review(s)
Model: C6800-16P10G= - Cisco Catalyst 6800 Switch Module
Detail: Catalyst 6800 16-port 10GE with integrated DFC4 spare
List Price: US$25,000.00
Price: $7,350.00
You save: US$17,650.00 (71% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Newark, NJ, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 7,350.00 In stock Brand New Sealed
OR

C6800-16P10G= SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (C6800-16P10G=)

C6800-16P10G= is a 16-port 10-Gigabit Ethernet Fiber Module with DFC4.

Quick Specs

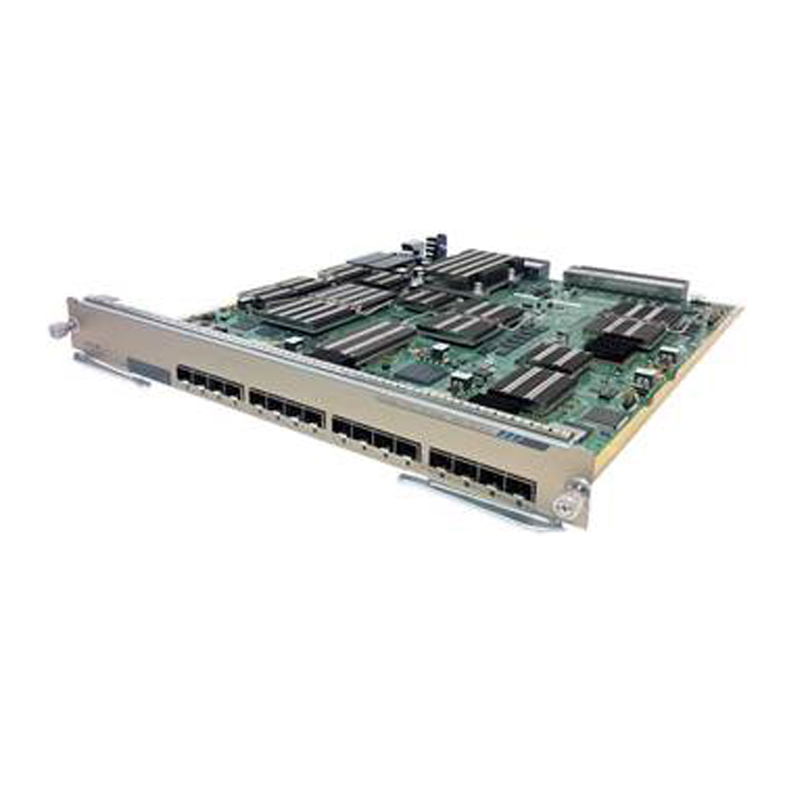

Figure 1 shows the 6800 Series 16-Port 10-Gigabit Ethernet Fiber Module.

the 6800 Series 16-Port 10-Gigabit Ethernet Fiber Module

Table 1 shows the Quick Specs.

Product Code

C6800-16P10G=

Ports per module

·16 ports—Sixteen 1G ports, or sixteen 10G ports, or four 40G ports
·Ports are numbered left to right.
·2 port groups. Port ranges per port group:
  ·1 to 8
  ·9 to 16

Backplane connection

80-Gbps backplane bandwidth in Catalyst 6807-XL and 6500-E chassis

Chassis/slot support

Can occupy slots 1-2 and 5-7 in a Cisco Catalyst 6807-XL. Can occupy any slot in Cisco Catalyst 6503E, 6504E, 6506E, 6509E, and 6509-V-E. Can occupy slots 1-6 and 9-13 in a Cisco Catalyst 6513-E

Cabling distance

Depends on the SFP transceiver installed in the module port

Maximum frame size

Up to 9216 bytes per frame

Module oversubscription rate

2:1 (When all sixteen 10G ports are used.)

Supervisor engine support

·Supervisor Engine 2T-10GE
·Supervisor Engine 6T

Software support

With Supervisor Engine 2T-10GE —Cisco IOS Release 15.2(1)SY or later

With Supervisor Engine 6T – Cisco IOS Release 15.3(1)SY or later

Fabric channel speed

In a Cisco Catalyst 6807-XL chassis—80 GB per second

In a Cisco Catalyst 6500-E series chassis—80 GB per second

TDR support

Supported with GLC-T (1G Copper SFP) transceivers

Digital Optical Monitoring (DOM) support

The DOM-supported 1G transceivers and 10G Fiber SFP/SFP+ transceivers

Operating temperature

Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Dimensions (H x W x D)

1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)

Weight

11.02 lb (5.0 kg)

Product Details

Figure 2 shows the C6800-16P10G= Ethernet Module Front Panel.

C6800-16P10G= Ethernet Module Front Panel

 Note:

40G port IDs

10G ports (A total of four port groups)

·The sticker on the module faceplate identifies it as either a C6800-16P10G or a C6800-16P10G-XL depending on whether a WS-F6K-DFC4-E or WS-F6K-DFC4-EXL daughter card is installed on the module.

The Accessories

Table 2 shows the recommended elements for the C6800-16P10G=.

Category

Model

Description

10G SFP Options



SFP-10G-LRM

10GBASE-LRM SFP Module

SFP-10G-ZR

10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC)

GLC Options



GLC-BX-U

1000BASE-BX SFP, 1310NM

GLC-SX-MMD

Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-ZX-SMD

Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 3 shows the comparison of C6800-16P10G= , C6800-8P10G= and C6800-32P10G-XL=.

Product Code

C6800-16P10G=

C6800-8P10G=

C6800-32P10G-XL=

10GE ports

16 ports 1GE or 10GE

8 ports 1GE or 10GE

32 ports 1GE or 10GE

Port groups

2 port groups (N/A)

2 port groups (N/A)

4 port groups

Performance Mode

Yes

per port-group



N/A

Yes

per port-group



Switch fabric connection

80 Gbps in 6807-XL and 6500-E chassis

80 Gbps in 6807-XL and 6500-E chassis

160 Gbps in 6807-XL chassis

80 Gbps in 6500-E chassis



Get More Information

Do you have any question about the C6800-16P10G=?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (C6800-16P10G=)

C6800-16P10G= Specification

Physical Specification

Dimensions (H x W x D)

1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)

Weight

11.02 lb (5.0 kg)

Environmental Specifications

Operating temperature

Certified for operation: 32° to 104°F (0° to 40°C)

Designed and tested for operation: 32° to 130°F (0° to 55°C)

Humidity (RH) ambient (noncondensing)

10 to 90 percent

Operating altitude

Certified for operation: 0 to 6500 ft (0 to 2000 m)

Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)
