C3945-VSEC/K9

4.7 3
4.7/5.0
3 Review(s)

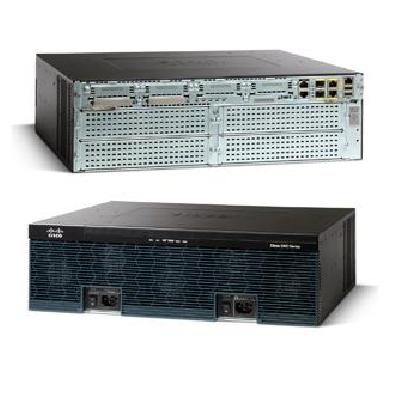

Model: C3945-VSEC/K9 Cisco 3900 Router Voice Security Bundle
Detail: Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License P
List Price: US$20,850.00
Price: $7,902.00
You save: US$12,948.00 (62% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 7,902.00 In stock Brand New Sealed
OR
SMARTnet
C3945-VSEC/K9 SMARTnet Service Tool.

Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (C3945-VSEC/K9)

C3945-VSEC/K9 is the Cisco 3900 Router ISR G2 Voice Security Bundle. Its appearance is similar with CISCO3945/K9, but it’s bundled with Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK.

Quick Specs

Table 1 shows the Quick Specs of the C3945-VSEC/K9.

Product Code

C3945-VSEC/K9

Bundle

Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK

Services Performance Engine module

w/SPE 150

Rack Units

3U

Interfaces

3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity

Expansion Slot(s)

4 service module slots

1 Internal Services Module slot

4 onboard digital signal processor (DSP) slots

4 Enhanced High-Speed WAN Interface Card (EHWIC) slots

RAM

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

47.6 cm x 43.8 cm x 13.3 cm

Product Details

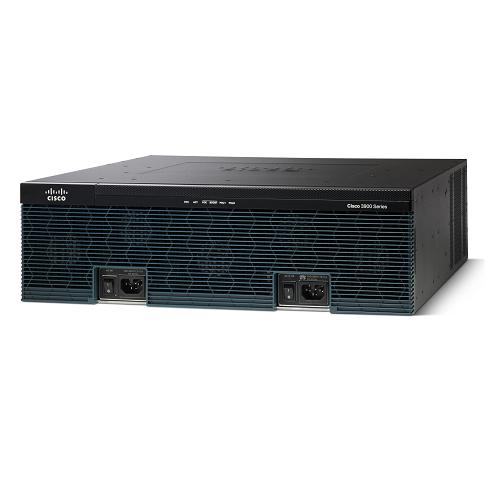

Figure 1 shows the front panel of the Cisco 3945 router. C3945-VSEC/K9 is similar with it.

cisco3945 front panel

Note:

On/Off switch

Power connector

LEDs area

Figure 2 shows the back panel of the Cisco 3945 router with slots and ports. C3945-VSEC/K9 is similar with it.

cisco3945 back panel

Note:

Compact flash 0 and 1 (0, right)

10/100/1000 Ethernet port GE 0/1 and GE 0/2 (GE 0/1, down)

EHWIC 0,1,2 and 3 (0, far right)

10/100/1000 Ethernet port GE 0/0

USB serial port

USB 0 and USB 1 (1,top)

RJ-45 serial console port

Ground

AUX port

Service module slots

SFP 1 and SFP 2 (2, top)

Table 2. Voice Security Bundle Features Table

Authentication and
Encryption Features

  • Media encryption of voice RTP streams using SRTP
  • Exchange of RTP Control Protocol (RTCP) information using secure RTCP
  • SRTP to RTP fallback for calls between secure and insecure endpoints
  • Secure calls supported in Cisco Unified Survivable Remote Site Telephony (SRST) mode during WAN failover
  • Compressed RTP (CRTP) supported with media encrypted calls using SRTP

Authentication and
Encryption Algorithm

  • Supports AES-128 encryption algorithm
  • Supports the HMAC secure hash authentication algorithm (SHA 1)

Signaling Authentication and Encryption Features

  • Gateway to Cisco Unified Communications Manager signaling and encryption uses IPSec for Media Gateway Control Protocol (MGCP), H.323 and SIP gateways
  • IP phone to Cisco Unified Survivable Remote Site Telephony router signaling and encryption uses TLS
    (Transport Layer Security)

Protocol Support

  • MGCP 0.1 (supports MGCP gateways with Cisco Unified Communications Manager)
  • H.323 (supported on H.323 gateways and CUBE; Cisco Unified Communications Manager interoperability is optional)
  • Session Initiation Protocol (SIP)
  • SCCP (Cisco Unified IP Phone) in SRST mode

Module Support

  • Any module that has PVDM2, PVDM3 and/or built-in DSP

Codec Support

  • G.711, G.729A, and G.729

Modularity Features

Table 3 shows modules for this router.

Models

Description

C3900-SPE150/K9

Cisco Services Performance Engine 150 for Cisco 3945 ISR. (It's a configured item in the CISCO3945/K9.)

SM-ES3G-16-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 16* 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

SM-ES3G-24-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 24 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

VWIC3-2MFT-G703

Cisco Voice/WAN Card VWIC3-2MFT-G703

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

Compare to Similar Routers

Table 4 shows the comparison of CISCO3945/k9 and C3945-VSEC/K9.

Model

CISCO3945/k9

C3945-VSEC/K9

Bundle

N/A

Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK

SPE

w/SPE 150

w/SPE 150

Interface

3GE

3GE

EHWIC slots

4

4

SM slots

4

4

ISM slots

1

1

DSP

4

4

SFP

2

2

Rack Unit

3U

3U

Get More Information

Do you have any question about the C3945-VSEC/K9 router?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (C3945-VSEC/K9)

C3945-VSEC/K9 Specifications

Device Type

Router

Form Factor

Desktop - modular - 3U

Bundle

Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Capacity

Cisco Unified Communications Manager Express sessions : 350
Cisco Unified SRST sessions : 1200

Network / Transport Protocol

IPSec, PPPoE, L2TPv3

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)

Remote Management Protocol

SNMP, RMON

Encryption Algorithm

SSL

Features

Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag

DRAM Memory

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

LED Status Lights Indicators

Link activity, power

Communications

Type

Voice / fax module

Digital Ports Qty

64

IP Telephony

Voice Codecs

G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726

Connectivity Slots

Router Interfaces

3 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Management : 1 x console - RJ-45
Management : 1 x console - mini-USB Type B
Serial : 1 x auxiliary - RJ-45
Hi-Speed USB : 2 x 4 PIN USB Type A
2 x SFP (mini-GBIC)

Expansion Slots Total (Free)

4 ( 4 ) x EHWIC
4 ( 3 ) x PVDM
2 ( 1 ) x CompactFlash Card
1 ( 1 ) x Expansion Slot
4 ( 4 ) x service module (SM)
1 ( 1 ) x ISM

Power Supply

Power Device

Power supply - internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Dimensions / Weight / Miscellaneous

Width

43.8 cm

Depth

47.6 cm

Height

13.3 cm

Weight

17.7 kg

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438

System Software

IOS Software Included

Cisco IOS Security

Software Included

Cisco IOS Unified Communications
