ASR1002X-20G-K9

Model: ASR1002X-20G-K9 - Cisco ASR 1000 Series Router
Detail: ASR1002-X Router, 20G, K9, AES license
List Price: US$75,000.00
Price: $22,050.00
You save: US$52,950.00 (71% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Worldwide
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 22,050.00 In stock Brand New Sealed
OR

ASR1002X-20G-K9 SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (ASR1002X-20G-K9)

Cisco ASR1002X-20G-K9 router is delivered into 2 rack unit chassis, the route processor for control plane embedded the services processor for data plane traffic as well as the carrier card which is designed to house I/O modules, share port adopters all integrated in the chassis. ASR 1002-X router comes with 6 build-in SFP ports and 3 box slots for I/O connectivity. The integrated embedded service processors offer 4 levels of system performance: 5Gbps which is default, 10, 20, 36Gbps all through software license upgrade without need for any additional hardware. The integrated the route processor comes by default with 4Gb DRAM, upgradeable to 8, 16Gb.

Quick Specs

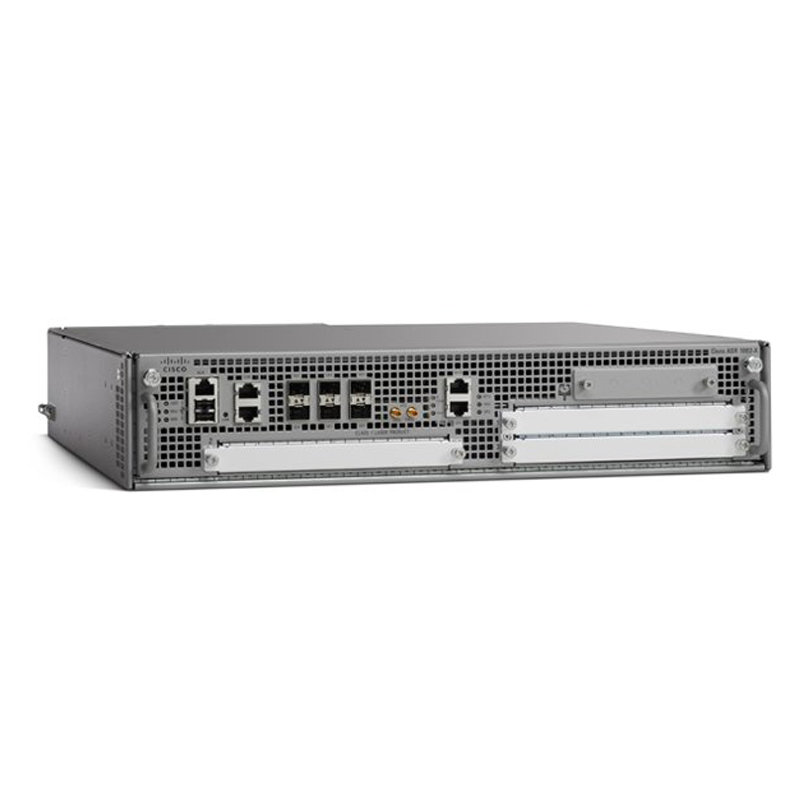

Figure 1 shows the appearance of ASR1002X-20G-K9.

 ASR1002X-20G-K9

Table 1 shows the Quick Specs.

Product Code

ASR1002X-20G-K9

Rack Height

2RU

System Bandwidth

5G (default) / 10G, 20G,36G (upgrade)

Router Processor (RP)

Dual-core 2.13Ghz processor

Build-in Gigabit Ethernet port

6 x SFP ports

Redundancy

Software (license purchase separately)

SIP and Ethernet line card

1 ESP slot

Embedded hardware-based encryption

Integrated ASR 1000-SIP10, not upgradable

Rack-mounting

19-inch

DRAM Memory

4GB-shared across RP, ESP, and SIP

Flash Memory

8 GB

Shared port adapters

3 SPA slots

External USB flash memory

4-GB USB flash-memory support

Product Details

Figure 2 shows the front panel of ASR1002X-20G-K9.

 ASR1002X-20G-K9-front

Note:

Built-in 6x1GE SPA in slot 0

SPA slot 1

SPA slot 3

SPA slot 2

Figure 3 shows the back panel of ASR1002X-20G-K9.

 ASR1002X-20G-K9-back

*ASR1002X-20G-K9 also support DC power supply but the rear panel is different.

*Caution! Use only AC power supplies or DC power supplies in the Cisco ASR1002X-20G-K9 Router. Do not mix power supply types.

The Configuration

The ASR1002X-20G-K9 should be configured with some accessories for normal operation.

Table 2 shows the recommended configuration.

Model

Description

Card

SPA-8XOC3-POS

8-port OC-3/STM-1 POS Shared Port Adapters

SPA-8XOC12-POS

8-port OC12/STM4 POS Shared Port Adapters

SPA-4XOC3-POS-V2

4-port OC-3/STM-1 POS Shared Port Adapters

License

FLASR1-CE-100R

Unified Border Element Ent, 100 Sessions, Redundancy

FLASR1-CE-4KR

Unified Border Element Ent, 4000 Sessions, Redundancy

FLASR1-CE-1KR

Unified Border Element Ent, 1000 Sessions, Redundancy

FLASR1-CE-500R

Unified Border Element Ent, 500 Sessions, Redundancy

Compare to Similar Items

Table 3 shows the comparison between ASR1002X-20G-K9 and ASR1002.

Models

ASR1002X-20G-K9

ASR1002

Scalability

5 to 36 Gbps

2.5 to 5, 10, 20Gbps

Rack Height

2U

2U

SFP Ports

6 x 1G

4 x 1G

SPA slots

3

3

SIP Slots

Integrated

Integrated

ESP Slots

Integrated

1

RP Slots

Integrated

Integrated

Get More Information

Do you have any question about the ASR1002X-20G-K9?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (ASR1002X-20G-K9)

ASR1002X-20G-K9 Specifications

Physical specifications

Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.

Refer to the applicable hardware installation guide for additional details.

Height: 3.5 in. (88.9 mm)

Width: 17.2 in. (437.4 mm)

Depth: 18.15 in. (461.0 mm)

Weight:

●  38.25 lb (17.36 kg) (with dual AC power supply and SPA blank covers)

●  39.05 lb (17.72 kg) (with dual DC power supply and blank covers)

●  No SPAs included

Note: The Cisco ASR 1002-X has the route processor, ESP, and SIP integrated.

Default memory

4-GB DRAM shared across route processor, ESP, and SIP

Number of SIPs or Ethernet line cards supported

Integrated in chassis

Shared port adapters

3 SPA slots

Ethernet port adapters

N/A

Cisco ASR 1000 Series ESP

Integrated in chassis

Route processor

Integrated in the chassis: Cisco ASR 1002-X Series Route Processor with Quad Core Processor

Redundancy

Software: Yes

Built-in Gigabit Ethernet ports

Yes: 6 Gigabit Ethernet SFP ports

Built-in 10 Gigabit Ethernet port

No

Network interface module

No

Cisco ASR 1000 Series

Cisco ASR 1002-X

ESP support

Cisco ASR 1002-X ESP with 5-Gbps (default)

Upgradable through software-activated feature license to 10, 20, or 36 Gbps

ESP bandwidth

5 to 36 Gbps

ESP memory

Share the same control memory on route processor

SIPs and Ethernet line cards

Integrated in chassis: not upgradable

Embedded hardware-based encryption

Yes: Up to 4-Gbps crypto support throughput

Minimum Cisco IOS XE Software release

Cisco IOS XE Software Release 3.7.0S

Rack-mounting

Yes: 19-inch

Wall-mounting

No

External USB flash memory

1-GB USB flash-memory support

Redundant power supply

Same as for Cisco ASR 1002

Power input

Same as for Cisco ASR 1002

Power consumption

●  Maximum (DC): 590W

●  Maximum (AC): 560W

●  Maximum (out): 470W

Airflow

Front-to-back

Operating temperature (nominal)

32 to 104°F
(0 to 40°C)

Operating temperature (short-term)

32 to 122°F
(0 to 50°C)

Operating humidity (nominal) (relative humidity)

10 to 85%

Operating humidity (short-term)

5 to 90%

Storage temperature

-40 to 150°F

(-40 to 70°C)

Storage humidity (relative humidity)

5 to 95%

Operating altitude

-500 to 10,000 feet
(152 to 3048 meters)

Network Equipment Building Standards (NEBS)

GR-1089 and GR-63

EMC standards

Same as for Cisco ASR 1001-X

Safety Standard

UL60950-1

CSA C22.2 No. 60950-1-03

EN 60950-1

IEC 60950-1

AS/NZS 60950.1
