The ASA5515-SSD120-K9 is one of the ASA5515-X series firewalls, which deliver up to 1.2 Gbps stateful inspection throughput, 250 IPsec VPN peers, 250,000 concurrent connections and 1 expansion slot. They ideally suits for the small, mid-size enterprises or branch offices. ASA5515-SSD120-K9 is integrated with 120G SSD which can install the FirePower services and monitored the overall security by using FireSight Management Center.

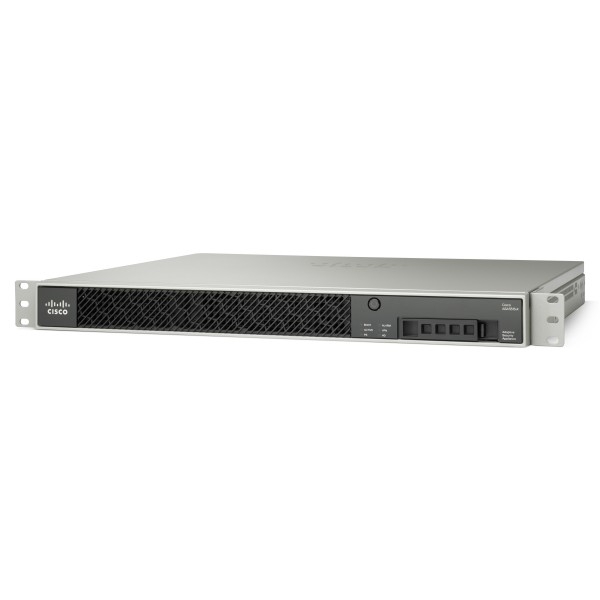

Figure 1 shows the appearance of ASA5515-SSD120-K9.
Table 1 shows the Quick Specs.
Integrated with 120G SSD which can install the FirePower services
and monitored the overall security by using FireSight Management Center.
6 copper GE ports, 1 copper GE management port
Stateful inspection throughput (multiprotocol)
Maximum 3DES/AES VPN throughput
IPsec site-to-site VPN peers
Virtual interfaces (VLANs)
Height (rack units)
Dimensions (D x H x W)
4.24 x 42.9 x 39.5 cm
Figure 2 shows the front panel of ASA5515-SSD120-K9.
Front Panel LED
Hard-disk release button
Figure 3 shows the back panel of ASA5515-SSD120-K9.
Back Panel LED: Power, Alarm, Boot, Active, VPN, HD0, HD1
GigabitEthernet data interfaces (0/0 through 0/5)
Management 0/0 interface
· The GigabitEthernet interface connects with an RJ-45 cable and must be restricted to management use only
Table 2 shows the recommended licenses for ASA5515-SSD120-K9.
AnyConnect Essentials VPN License - ASA 5515-X (250 Users) for Cisco ASA 5500 Series
Cisco VPN Licenses - AnyConnect Mobile - ASA 5515-X (req. Essentials or Premium) VPN Licenses for Cisco
Cisco ASA 5500 Series Unified Communications Licenses (eDelivery) for Cisco ASA 5500 Series
Cisco ASA 5500 Series IPS Security Services Processors, ASA 5515-X IPS SSP License for Cisco ASA 5500 Series
Cisco VPN Licenses - Premium Shared VPN Participant License - ASA 5515-X VPN Licenses for Cisco
Cisco VPN Licenses - AnyConnect VPN Phone License - ASA 5515-X (req Premium lic) VPN Licenses for Cisco
Cisco ASA 5500 Firewall License ASA 5515-X Botnet Traffic Filter Lic. for 1 Yr (eDelivery) for Cisco 5500 Firewall
Compare to Similar Items
Table 3 shows the comparison of ASA5515-SSD120-K9 and ASA5515-K9.
Integrated with 120G SSD
6 GE Copper
6 GE Copper
Get More Information
Do you have any question of ASA5515-SSD120-K9?
Contact us now via Live Chat or firstname.lastname@example.org.
Stateful inspection throughput (maximum)
Stateful inspection throughput (multiprotocol])
ASA IPS throughput
(extra hardware not required)
Next-generation firewall throughput(multiprotocol)
Triple Data Encryption Standard/Advanced Encryption Standard (3DES/AES) VPN throughput
IPsec VPN peers
Cisco AnyConnect Premium VPN peers (included; maximum)
New connections per second
Virtual interfaces (VLANs)
Security contexts(included; maximum)
Active/active and active/standby
1 interface card
User-accessible Flash slot
USB 2.0 ports
6 GE copper
6 GE copper or
6 GE SFP
Dimensions (H x W x D)
1.67 x 16.7 x 15.6 In (4.24 x 42.9 x 39.5 cm)
Weight (with AC power supply)
13.39 lb (6.07 kg)
