AIR-CAP2702I-H-K9

4.6 9
4.6/5.0
9 Review(s)
| 10 answered questions

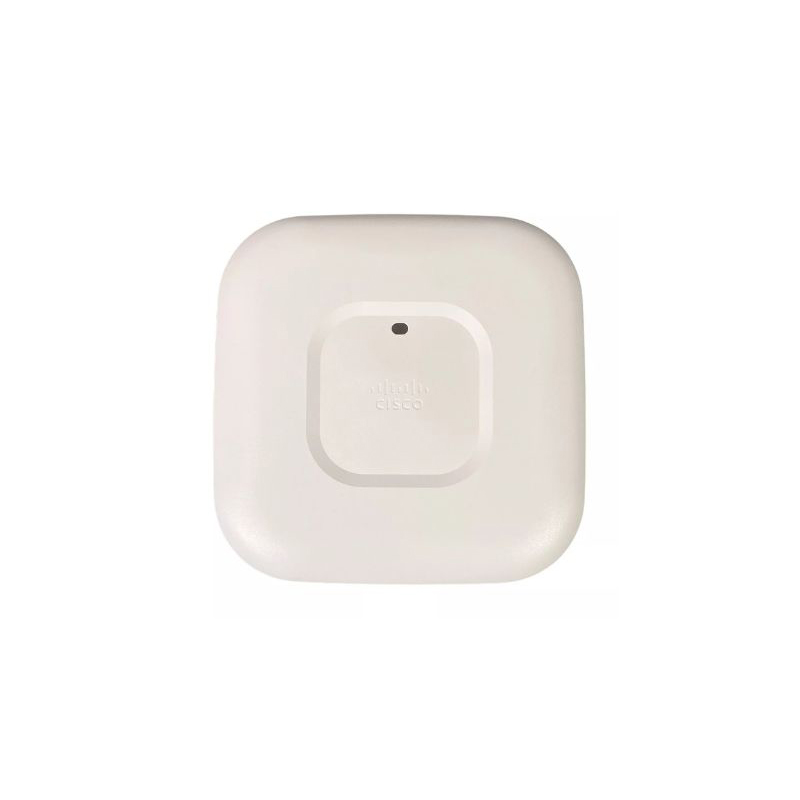

Model: AIR-CAP2702I-H-K9 Cisco Aironet 2700 Series Wireless Access point
Detail: Cisco Aironet 2700 Series Access Point - 3*4 MIMO technology - IEEE 802.11a/g/n/ac - 2.4GHz-5GHz - Control Base - Internal antennas
List Price: US$1,095.00
Price: $482.00
You save: US$613.00 (56% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Newark, NJ, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 482.00 In stock Brand New Sealed
OR

AIR-CAP2702I-H-K9 SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (AIR-CAP2702I-H-K9)

Based on the Cisco Aironet heritage of RF excellence, the 2700 Series utilizes a Purpose-built innovative chipset to provide a high density experience for enterprise network. 3 x 4 MIMO (multiple-input multiple-output) technology with three-spatial-stream offers a greater coverage for more reliability and capacity than competing access points. AIR-CAP2702I-H-K9 is one of the 2700 series AP, needing wireless controller, providing internal antenna and H regulatory domain.

Quick Specs

Table 1

Product Code

AIR-CAP2702I-H-K9

WiFi Standards

802.11a/b/g/n/ac

Ideal For

Midsize or large enterprises that require advanced features

Max Data Rate 5GHz

1.3 Gbps

MIMO Radio Design: Spatial Streams

3 x 4:3

Client count/ClientLink client count

200/128

Controller Available

Yes

Power

- 802.3at PoE+

- Enhanced PoE

- Cisco AP2700 power injectors

- Cisco AP2700 local power supply

Note: If 802.3af PoE is the source of power, the access point will dynamically shift

from 3x4 to 3x3 and come up under PoE.

Antenna

Internal Antenna

Regulatory Domain

H (H regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5.150 to 5.350 GHz; 8 channels

- 5.745 to 5.825 GHz; 5 channels

Dimensions (W x L x H)

22.1 x 22.1 x 5.1 cm (without mounting bracket)

Package Weight

2.0 Kg

The Accessories

Table 2 shows the recommended accessories.

Accessories

Models

Description

Ethernet Switch Power Injectors

AIR-PWRINJ4=

Cisco AP power option AIR-PWRINJ4 Power Injector

- AP1140/1250/1260/3500/1600/1700/2600/2700/3600/3700 Series

Local Power supply

AIR-PWR-B

Cisco AP power option PwrSpply:100-240VAC,48VDC

Compare to Similar Item

Table 3 shows the comparison between two APs.

Models

AIR-CAP2702I-H-K9

AIR-CAP2702E-H-K9

WiFi Standards

802.11a/b/g/n/ac

802.11a/b/g/n/ac

Antenna

Internal Antenna

External Antenna

Controller Available

Yes

Yes

Max Data Rate 5GHz

1.3 Gbps

1.3 Gbps

MIMO Radio Design: Spatial Streams

3 x 4:3

3 x 4:3

Regulatory Domain

H (H regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5.150 to 5.350 GHz; 8 channels

- 5.745 to 5.825 GHz; 5 channels

H (H regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5.150 to 5.350 GHz; 8 channels

- 5.745 to 5.825 GHz; 5 channels

Get More Information

Do you have any question about the AIR-CAP2702I-H-K9?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (AIR-CAP2702I-H-K9)

AIR-CAP2702I-H-K9 Specification

Product Description

Cisco Aironet 2700 Series Access Points with Internal antennas

Devide Type

Wireless  Access point

Regulatory domain

H regulatory domain

Supported wireless LAN controllers

  • ● Cisco 2500 Series Wireless Controllers
    ● Cisco Wireless Controller Module for ISR G2
    ● Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches
    ● Cisco 5500 Series Wireless Controllers
    ● Cisco Flex 7500 Series Wireless Controllers
    ● Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
    ● Cisco 5760 Wireless LAN Controller
    ● Cisco Catalyst 3850 Series Switches
    ● Cisco Catalyst 3650 Series Switches

Software

Cisco Unified Wireless Network Software Release 7.6MR2 or later

Data rates supported

  • ● 802.11a: up to 54 Mbps
    ● 802.11g: up to 54 Mbps
  • ● 802.11n on 2.4 GHz: up to 216.7 Mbps
    ● 802.11ac on 5 GHz: up to 1.3Gbps

Maximum number of nonoverlapping channels

5 GHz
●  802.11a:
◦   20 MHz: 21
●  802.11n:
◦   20 MHz: 21
◦   40 MHz: 9
●  802.11ac:
◦   20 MHz: 21
◦   40 MHz: 9
◦   80 MHz: 4

2.4 GHz
●  802.11b/g:
◦   20 MHz: 3
●  802.11n:
◦   20 MHz: 3

Antenna (purchase separately)

  • Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
  • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

Interfaces

  • 10/100/1000BASE-T autosensing (RJ-45)
  • Management console port (RJ-45)

System memory

  • 512 MB DRAM
  • 64 MB flash

Power consumption

15 Watts

IEEE standards

  • IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
  • IEEE 802.11ac Draft 5

Security

  • ● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
    ● 802.1X
  • ● Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

Extensible Authentication Protocol (EAP) types

  • ● EAP-Transport Layer Security (TLS)
    ● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
    ● Protected EAP (PEAP) v0 or EAP-MSCHAPv2
  • ● EAP-Flexible Authentication via Secure Tunneling (FAST)
    ● PEAP v1 or EAP-Generic Token Card (GTC)
    ● EAP-Subscriber Identity Module (SIM)

Frequency band and 20-MHz operating channels

H (H regulatory domain):
  2.412 to 2.472 GHz; 13 channels
  5.150 to 5.350 GHz; 8 channels
  5.745 to 5.825 GHz; 5 channels

Environmental

  • ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
    ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
    ● Operating temperature: -4° to 122°F (-20° to 50°C)
  • ● Operating humidity: 10% to 90% percent (noncondensing)
    ●  Operating altitude test: 40˚C, 9843 ft.
Q&A

Faq (AIR-CAP2702I-H-K9)

Does it support my AIR-CT2504-25-K9 wireless controller?

Yes,Cisco 2500 series wireless controller is supported.

How about my AIR-CT5508-12-K9? Does it support?

Yes ,Cisco 5500 series Controller is supported, too.

What wireless controller does it support exactly?

It supports Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller, Cisco 5760 Wireless LAN Controller and etc.

How about the system memory?

There is 512 MB DRAM and 64MB flash.

Does it consump much power?

No,It only consumps 15 Watts.

Can I buy it separately without wireless controller from your site?

Yes, you can buy it separately.

Which version the software should be?

It should be Cisco Unified Wireless Network Software Release 7.6MR2 or later.

Is there a discount if I buy it with some wireless controller?

You can ask it to our saler via Live Chat or sales@router-switch.com.

Are there any other similiar products that I can choose for my 2500 series wireless controller?

Maybe you can choose AIR-CAP2702I-C-K9, or AIR-CAP2702E-H-K9. It all depends on your actual needs.

How does it differ from AIR-CAP2702E-H-K9?

The difference shows in the overview. Just look at this table.

Models

AIR-CAP2702I-H-K9

AIR-CAP2702E-H-K9

WiFi Standards

802.11a/b/g/n/ac

802.11a/b/g/n/ac

Controller Available

Internal Antenna

External Antenna

Max Data Rate 5GHz

Yes

Yes

MIMO Radio Design: Spatial Streams

1.3 Gbps

1.3 Gbps

Regulatory Domain

3 x 4:3

3 x 4:3

Regulatory Domain

H (H regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5.150 to 5.350 GHz; 8 channels

- 5.745 to 5.825 GHz; 5 channels

H (H regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5.150 to 5.350 GHz; 8 channels

- 5.745 to 5.825 GHz; 5 channels

Shipping & Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Reviews

Customer Reviews

4.6 5
4.6 (9 reviews)
5 Stars
5
4 Stars
4
3 Stars
0
2 Stars
0
1 Stars
0

Share your thoughts with other customers?

Posted on 9/17/2016
Verified Buyer
55
Great experience

Thank you tell me the detialed -H Reg Domain inclued which frequency, good for me used the AP.

Posted on 8/10/2016
Verified Buyer
45
AIR-CAP2702I-H-K9- External, indoor

with ClientLink 3.0 technology, this AP improveS downlink performance to all mobile devices, including one-, two-, and three-spatial-stream devices on 802.11ac.

Posted on 7/11/2016
Verified Buyer
55
Nice Company

My friend recommend them to me, really nice company, good price, good quality and service.

Posted on 12/19/2015
Verified Buyer
55
Fast Delivery

Thank your for your fast delivery, same time.

Posted on 10/19/2015
Verified Buyer
45
CCIE services

I want to buy more AIR-CAP2702I-E-K9, the CCIE tell me that if we had AP is -H Reg Domain already, should take -H AP is better.

Posted on 1/25/2015
Verified Buyer
55
More orders

Procurement smoothly, will buy more.

Posted on 12/28/2014
Verified Buyer
55
Skilled operation

Have been purchased from them many time, every order is smoothly.

Posted on 9/3/2014
Verified Buyer
45
Internal antennas

This one offers internal antennas. I don't know whether it's the reason that my signal isn't good.

Posted on 8/18/2014
Verified Buyer
45
Large stock

Very nice, can send the 28units to me within 1 day, save time.
