- Product Overview

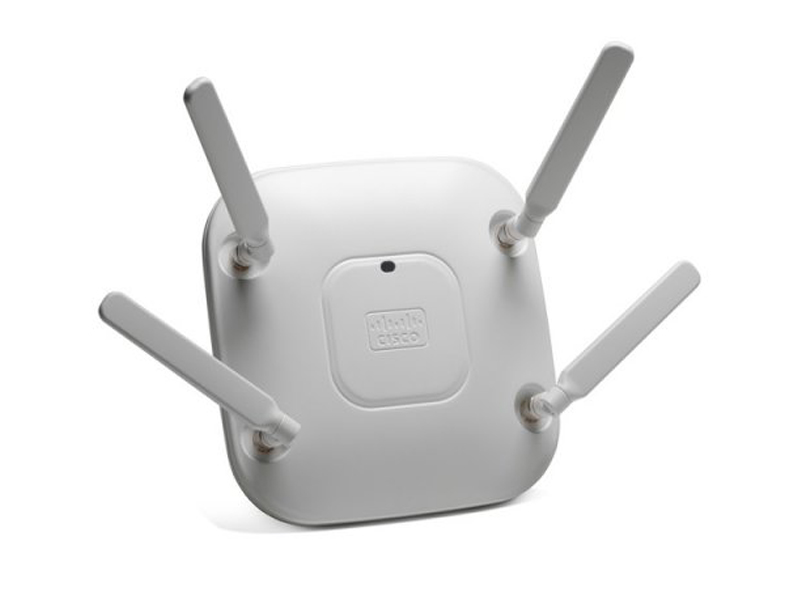

This Cisco Aironet 2602 Access Point needs AP controller, supports external antenna and follows 802.11a/g/n protocol. Its regulatory domain is A which means FCC area, including North, South, and Central America, Australia, and New Zealand, various parts of Asia and Oceania.
Small, midsize, large enterprises and mid-market
Max Data Rate
MIMO Radio Design: Spatial Streams
3 x 4:3
Client count/ClientLink client count
802.3af Enternet Switch Power Injectors
Local Power supply
Dimensions (W x L x H)
8.7 x 8.7 x 2.11 in.
Table 2 shows the recommended accessories.
Antennas - Dual Band - Cisco AIR-ANT2524DG-R , 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., Gray, RP-TNC
Antennas - Dual Band - Cisco AIR-ANT2524DW-R , 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., White, RP-TNC
Antennas - Dual Band - Cisco AIR-ANT2524DB-R , 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., Black, RP-TNC
Compare to Similar Items
Table 3 shows the comparison between two AP.
IEEE 802.11 a/b/g/n
IEEE 802.11 a/b/g/n
No (standalone mode)
Get more information
Do you have any question about the AIR-CAP2602E-A-K9?
Contact us now via Live Chat or email@example.com.
Cisco Aironet 2600 Series Access Points with External antennas
Wireless Access point
A regulatory domain
Supported wireless LAN controllers
● Cisco 2500 Series Wireless Controllers
● Cisco Wireless Controller Module for ISR G2
● Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches
● Cisco 5500 Series Wireless Controllers
● Cisco Flex 7500 Series Wireless Controllers
Cisco Unified Wireless Network Software Release 7.2.110 or later.
Data rates supported
● 802.11a: up to 54 Mbps
● 802.11g: up to 54 Mbps
● 802.11n on 2.4 GHz: up to 450Mbps
Maximum number of nonoverlapping channels
◦ 20 MHz: 21
◦ 20 MHz: 21
◦ 40 MHz: 9
◦ 20 MHz: 3
◦ 20 MHz: 3
Antenna (purchase separately)
● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
● Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios
● 10/100/1000BASE-T autosensing (RJ-45)
● Management console port (RJ-45)
256 MB DRAM
32 MB flash
Power consumption (power supply purchase separately)
15.4 Watts(standard 802.af PoE)
IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
● Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
Extensible Authentication Protocol (EAP) types
● EAP-Transport Layer Security (TLS)
● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
● Protected EAP (PEAP) v0 or EAP-MSCHAPv2
● EAP-Flexible Authentication via Secure Tunneling (FAST)
● PEAP v1 or EAP-Generic Token Card (GTC)
● EAP-Subscriber Identity Module (SIM)
Frequency band and 20-MHz operating channels
A (A regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
● 5.745 to 5.825 GHz; 5 channels
● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)
● Nonoperating (storage) Altitude Test: 25˚C, 15,000 ft.
● Operating temperature: -4 to 131°F (-20 to 55°C)
● Operating humidity: 10 to 90 % (noncondensing)
● Operating Altitude Test: 40˚C, 9843 ft.
