Model: AC6005-8-PWR-8AP Huawei AC6005 Wireless Controller
Detail: AC6005-8-PWR-8AP Bundle(Including AC6005-8-PWR,Resource License 8AP,AC 110/220V)
Price: US$1,950.00
Condition: Brand New Sealed
Availability: In stock
US$ 1,950.00 In stock Brand New Sealed
Product Overview

Overview (AC6005-8-PWR-8AP)

Huawei AC6005-8-PWR-8AP Bundle includes 8 GE POE ports and 8 Access point license. The Huawei AC6005 series access controller is ideally design for small to medium size enterprise to provide wired and wireless services for office network. Moreover, Huawei AC6005 wireless access controller delivers 4Gbit/s forwarding capacity, supports up to 128 access points, up to 2048 access users, and easily scales as needed. It also provides most cost-efficient mobility solution and simplify mobility management.

Quick Specs

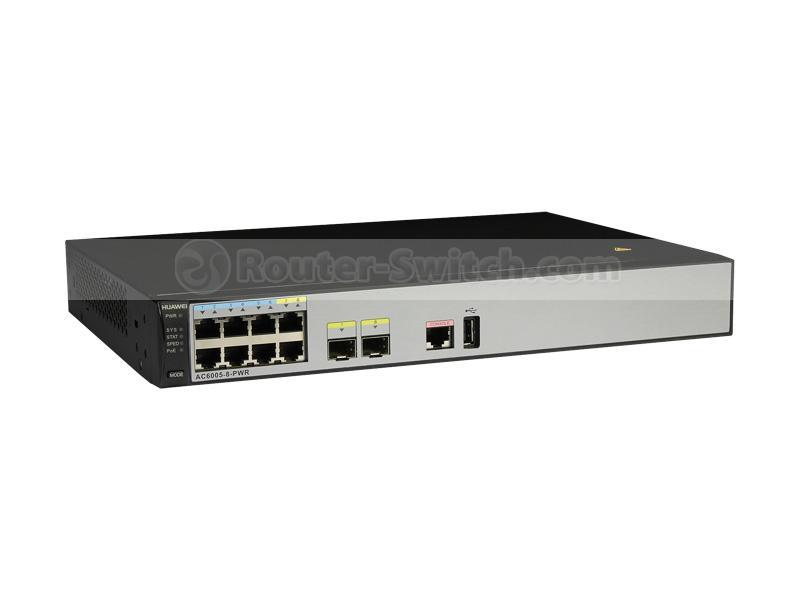

Figure 1 shows the appearance of AC6005-8-PWR-8AP.

AC6005-8-PWR-8AP Appearance

Table 1 shows the Quick Specs.

Product Code



6 x GE + 2 x GE Combo


8-port PoE or 4-port PoE+

Power Supply


Forwarding Capability

4 Gbit/s

Maximum Number of Managed APs


Maximum Number of Access Users


AP-AC Networking

Layer 2 or Layer 3 networking

Forwarding Modes

Direct forwarding (distributed forwarding or local forwarding)

or tunnel forwarding (centralized forwarding)

AC Active/Standby Mode

1+1 HSB or N+1 backup

Dimensions (W x D x H)

320 mm x 233.6 mm x 43.6 mm

Net Weight

2.3 kg

Product Details

Figure 2 shows the front panel of AC6005-8-PWR-8AP.

AC6005-8-PWR-8AP Front Panel


MODE button

Console Port

6 × 10/100/1000BASE-T

Ethernet electrical ports.

USB Port

Two Pairs of combo ports

LEDs Area

Table 2 shows the LEDs Area description.




Power Supply Indicator: PWR


Power supply not on

Steady green

Power supply working properly

Steady orange

PoE power supply faulty

System Status Indicator: SYS


System not operating

Steady green

Fast blinking: System starting

Slow blinking: System running properly

Steady red

System cannot start normally or there is an overheat or fan alarm

State Mode Indicator: STAT


State mode not selected

Steady green

Service port indicator works in default mode (STAT).

In this mode, the indicator shows the port status

Speed Mode Indicator: SPED


Speed mode not selected

Steady green

Service port indicator shows port speed.

After 45 seconds, service port indicator automatically returns to default mode (STAT)

PoE Mode Indicator: PoE


PoE mode not selected

Steady green

Service port indicator shows PoE status of each port.

After 45 seconds, service port indicator automatically returns to default mode (STAT)

Figure 3 shows the back panel of AC6005-8-PWR-8AP.

AC6005-8-PWR-8AP Back Panel


Ground point

AC power jack

The Optical Transceiver

Table 3 shows the recommended Optical Transceivers for AC6005-8-PWR-8AP.




Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)


Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)


Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)


Optical Transceiver, eSFP, GE,S ingle-mode Module (1310nm, 40km, LC)


Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

Compare to Similar Items

Table 4 shows the comparison of AC6005-8-8AP and AC6005-8-PWR-8AP.




PoE Available


Yes, it supports PoE power supply on six ports.


6 x GE + 2 x GE Combo

6 x GE + 2 x GE Combo

Power Supply



Forwarding Capability

4 Gbit/s

4 Gbit/s

Get More Information

Do you have any question of Huawei AC6005-8-PWR-8AP controller?

Contact us now via Live Chat or


Specification (AC6005-8-PWR-8AP)

AC6005-8-PWR-8AP Specification

Technical specifications

 *Dimensions (H x W x D):43.6 mm x 320 mm x 233.6 mm

 *Weight: 2.9 kg

 *Operating temperature: –5oC to 50oC

 *Storage temperature: –40oC to +70oC

 *Humidity: 5% to 95%

 *Input voltage: 100 V AC to 240 V AC; 50/60 Hz

 *Maximum voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz

 *Maximum power consumption: 163.6 W (device power consumption: 39.6 W, PoE: 124 W)

Interface type

 *8 x GE interfaces, among which the last two are multiplexed with two optical interfaces as combo interfaces

 *One RJ45 serial maintenance interface

 *One Mini USB serial maintenance interface

LED indicator

 *Power module indicator (PWR): indicates the power-on status of the device.

 *System running status indicator (SYS): indicates the running status of the device.

 *Service network port indicator: indicates the data transmission status, interface rate, and PoEstatus of a network port.

Number of managed APs


Number of SSIDs


Number of APs controlled by each license

1, 8, 32

Number of access users

Entire device: 2K

User group management

The AC supports 128 user groups:

 *Each user group can reference a maximum of 8 A CLs.

 *Each user group can associate with a maximum of 128 A CL rules.

Number of MAC addresses


Number of VLANs


Number of ARP entries


Number of routing entries


Number of multicast forwarding entries


Number of DHCP IP address pools

64 IP address pools, each containing a maximum of 8K IP addresses
