Huawei AC6005-8-8AP bundle includes 8 Gigabit Ethernet ports, 2 Combo ports (Rj-45 or SFP), 8 AP licenses. The Huawei AC6005 series access controller is ideally design for small to medium size enterprise to provide wired and wireless services for office network. Moreover, Huawei AC6005 wireless access controller delivers 4Gbit/s forwarding capacity, supports up to 128 access points, up to 2048 access users, and easily scales as needed. It also provides most cost-efficient mobility solution and simplify mobility management.

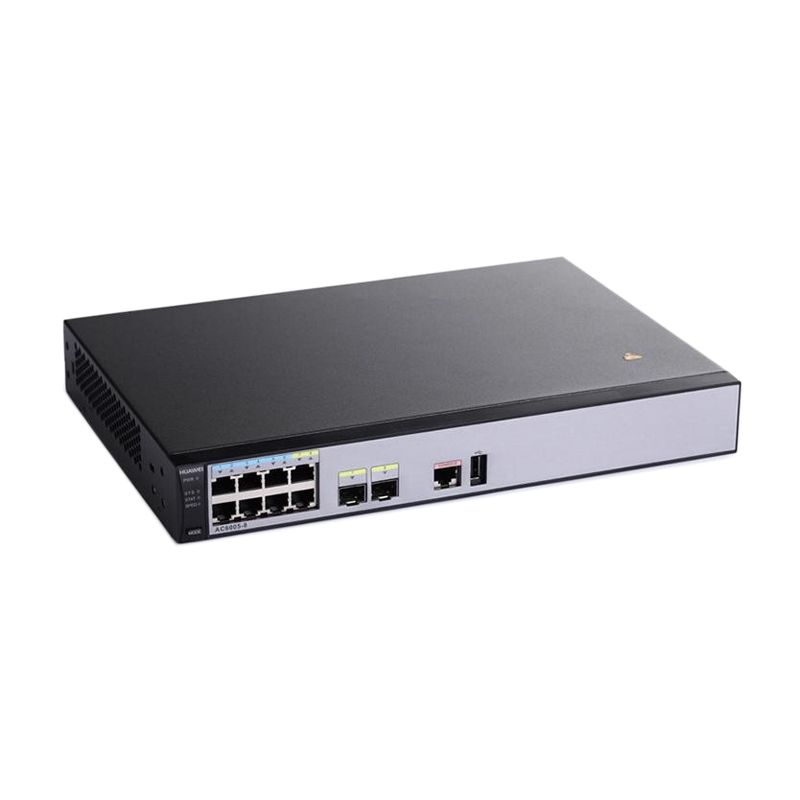

Figure 1 shows the appearance of AC6005-8-8AP.
Table 1 shows the Quick Specs.
6 x GE + 2 x GE Combo
Maximum Number of Managed APs
Maximum Number of Access Users
Layer 2 or Layer 3 networking
Direct forwarding (distributed forwarding or local forwarding)
or tunnel forwarding (centralized forwarding)
AC Active/Standby Mode
1+1 HSB or N+1 backup
Dimensions (W x D x H)
320 mm x 233.6 mm x 43.6 mm
Figure 2 shows the front panel of AC6005-8-8AP.
6 × 10/100/1000BASE-T
Ethernet electrical ports.
Two Pairs of combo ports
Table 2 shows the LEDs Area description.
Power Supply Indicator: PWR
Power supply not on
Power supply working properly
System Status Indicator: SYS
System not operating
Fast blinking: System starting
Slow blinking: System running properly
System cannot start normally or there is an overheat or fan alarm
State Mode Indicator: STAT
State mode not selected
Service port indicator works in default mode (STAT).
In this mode, the indicator shows the port status
Speed Mode Indicator: SPED
Speed mode not selected
Service port indicator shows port speed.
After 45 seconds, service port indicator automatically returns to default mode (STAT)
Figure 3 shows the back panel of AC6005-8-8AP.
AC power jack
The Optical Transceiver
Table 3 shows the recommended Optical Transceivers for AC6005-8-8AP.
Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
Optical Transceiver, eSFP, GE,S ingle-mode Module (1310nm, 40km, LC)
Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)
Compare to Similar Items
Table 4 shows the comparison of AC6005-8-8AP and AC6005-8-PWR-8AP.
Yes, it supports PoE power supply on six ports.
6 x GE + 2 x GE Combo
6 x GE + 2 x GE Combo
Get More Information
Do you have any question of Huawei AC6005-8-8AP controller?
Contact us now via Live Chat or firstname.lastname@example.org.
*Dimensions (H x W x D):43.6 mm x 320 mm x 233.6 mm
*Weight: 2.9 kg
*Operating temperature: –5oC to 50oC
*Storage temperature: –40oC to +70oC
*Humidity: 5% to 95%
*Input voltage: 100 V AC to 240 V AC; 50/60 Hz
*Maximum voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz
*Maximum power consumption: 163.6 W (device power consumption: 39.6 W, PoE: 124 W)
*8 x GE interfaces, among which the last two are multiplexed with two optical interfaces as combo interfaces
*One RJ45 serial maintenance interface
*One Mini USB serial maintenance interface
*Power module indicator (PWR): indicates the power-on status of the device.
*System running status indicator (SYS): indicates the running status of the device.
*Service network port indicator: indicates the data transmission status, interface rate, and PoEstatus of a network port.
Number of managed APs
Number of SSIDs
Number of APs controlled by each license
1, 8, 32
Number of access users
Entire device: 2K
User group management
The AC supports 128 user groups:
*Each user group can reference a maximum of 8 A CLs.
*Each user group can associate with a maximum of 128 A CL rules.
Number of MAC addresses
Number of VLANs
Number of ARP entries
Number of routing entries
Number of multicast forwarding entries
Number of DHCP IP address pools
64 IP address pools, each containing a maximum of 8K IP addresses
